Steam Integrator: Vapor Line® Type 5 Chemical Integrator
$26.70 – $463.05
Vapor Line® Integrators monitor all of the critical parameters of steam sterilization. Vapor Line features moving front ink and a easy-to-identify “PASS” and “FAIL” areas for quick interpretation of results.
- Type 5 Chemical Integrator for Steam Sterilization, use for pack and load monitoring, compliant with ISO 11140-1: 2014
- Black ink reaches “Pass” area indicates sterilization conditions have been met
- Available with or without extender
- The integrator is designed to correlate with the performance of a BI
Description
Vapor Line® Steam Chemical Integrator is a chemical indicator for monitoring essential conditions of steam sterilization. Vapor Line® is an AAMI/ANSI/ISO 11140-1 Type 5 steam integrator, it is designed to show equivalence in performance to biological indicators.

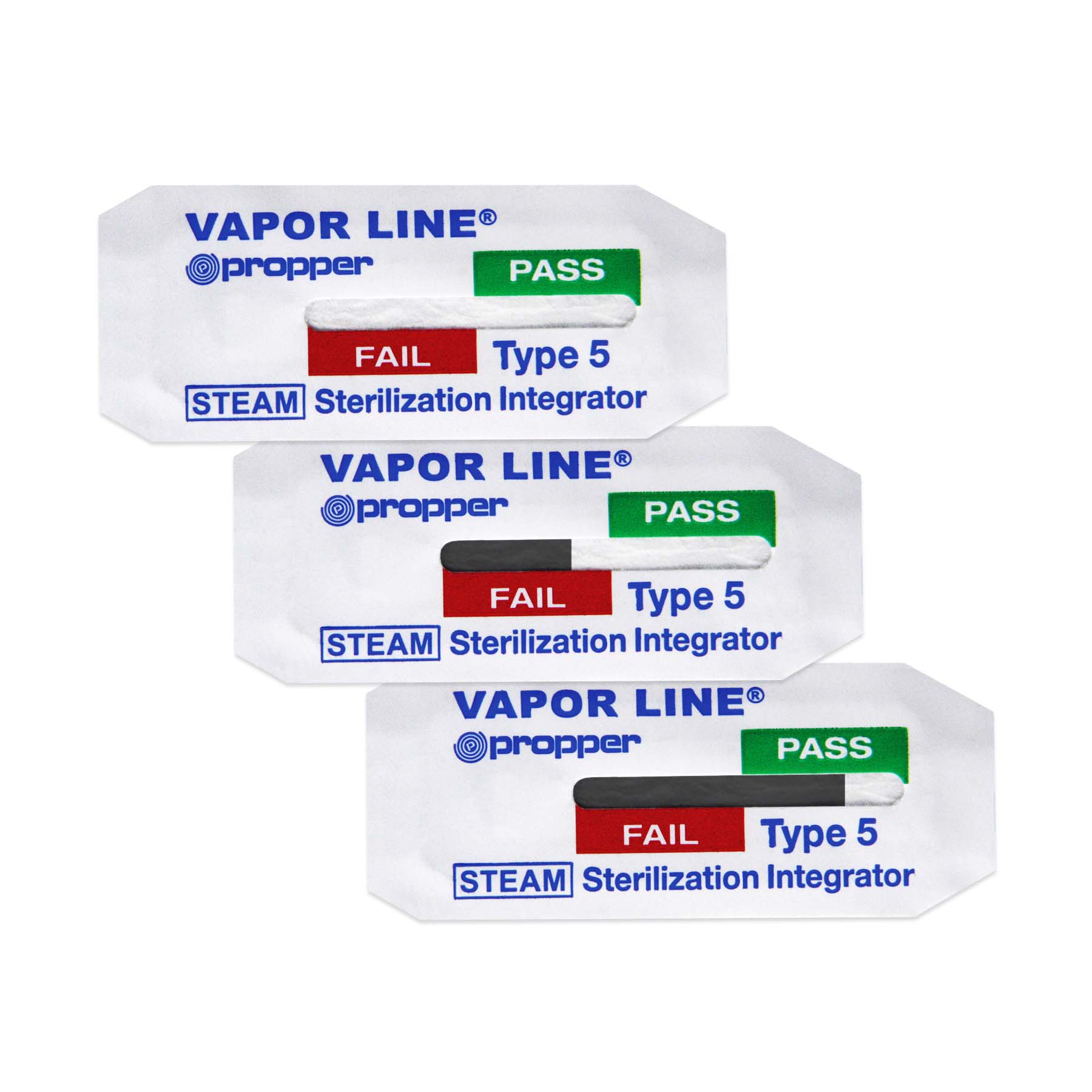

During sterilization, the dark brown/black bar migrates along a paper wick from FAIL into the PASS area. PASS results indications that conditions in the sterilized pack were sufficient to kill even the most resistant forms of microorganisms, plus a “overkill period”. The “overkill period” is a safety zone beyond the spore death curve for an additional level of sterilization security.

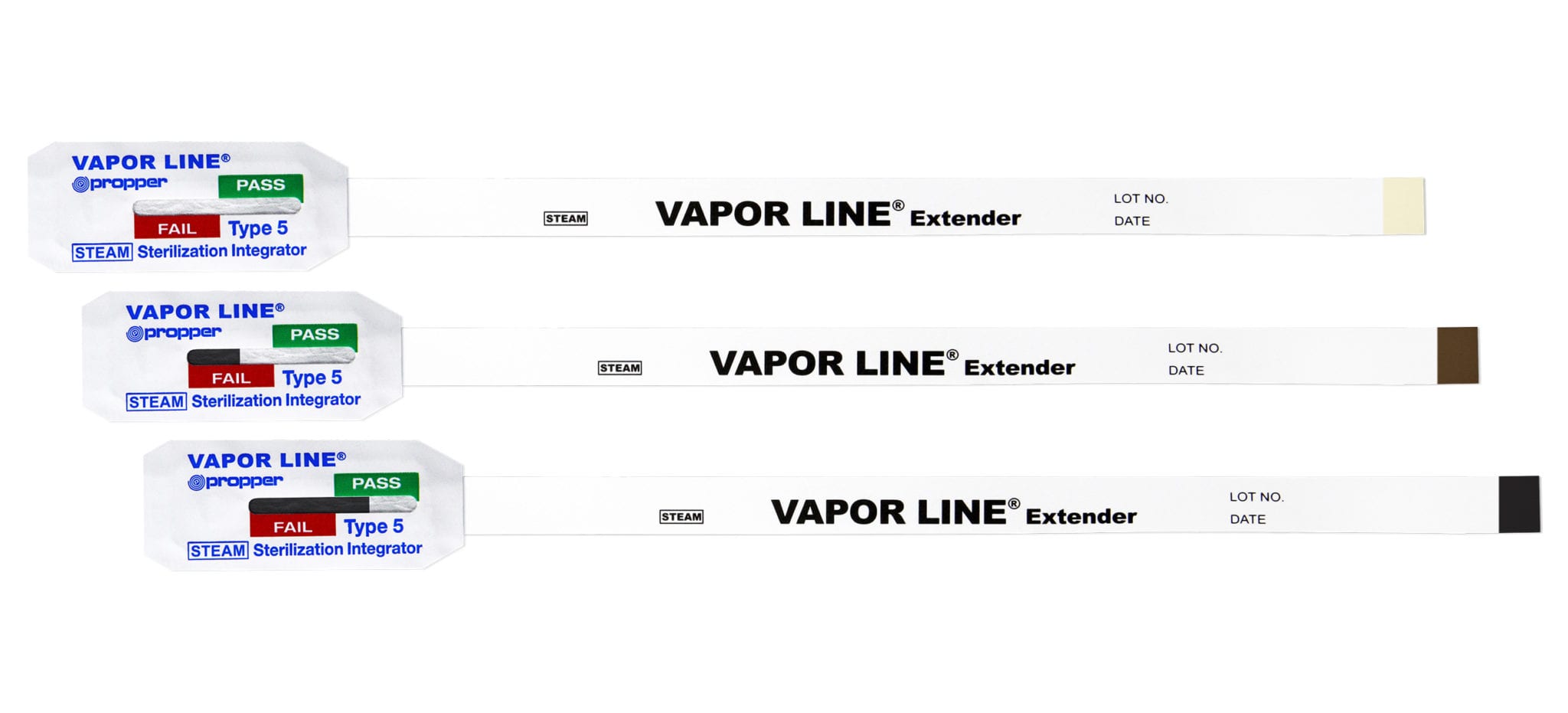

Vapor Line® Steam Integrator is available with or without an extender. The extender acts as an aid for secure sterile presentation. The end of the extender has a chemical indicator that reacts when sterilization conditions are met. The indicator changes from white to dark brown/black.
For use in sterilization cycles 250°F(121°C), 270°F(132°C), 273°F (134°C).
Literature
Below you will find associated information about this product.
